  • US/ATC90

    by
    Billy Golightly
    Published on 12-24-2009 02:10 AM
    1 Comment Comments

    US90 1970 Thru 1973 & ATC90 1974 Thru 1978

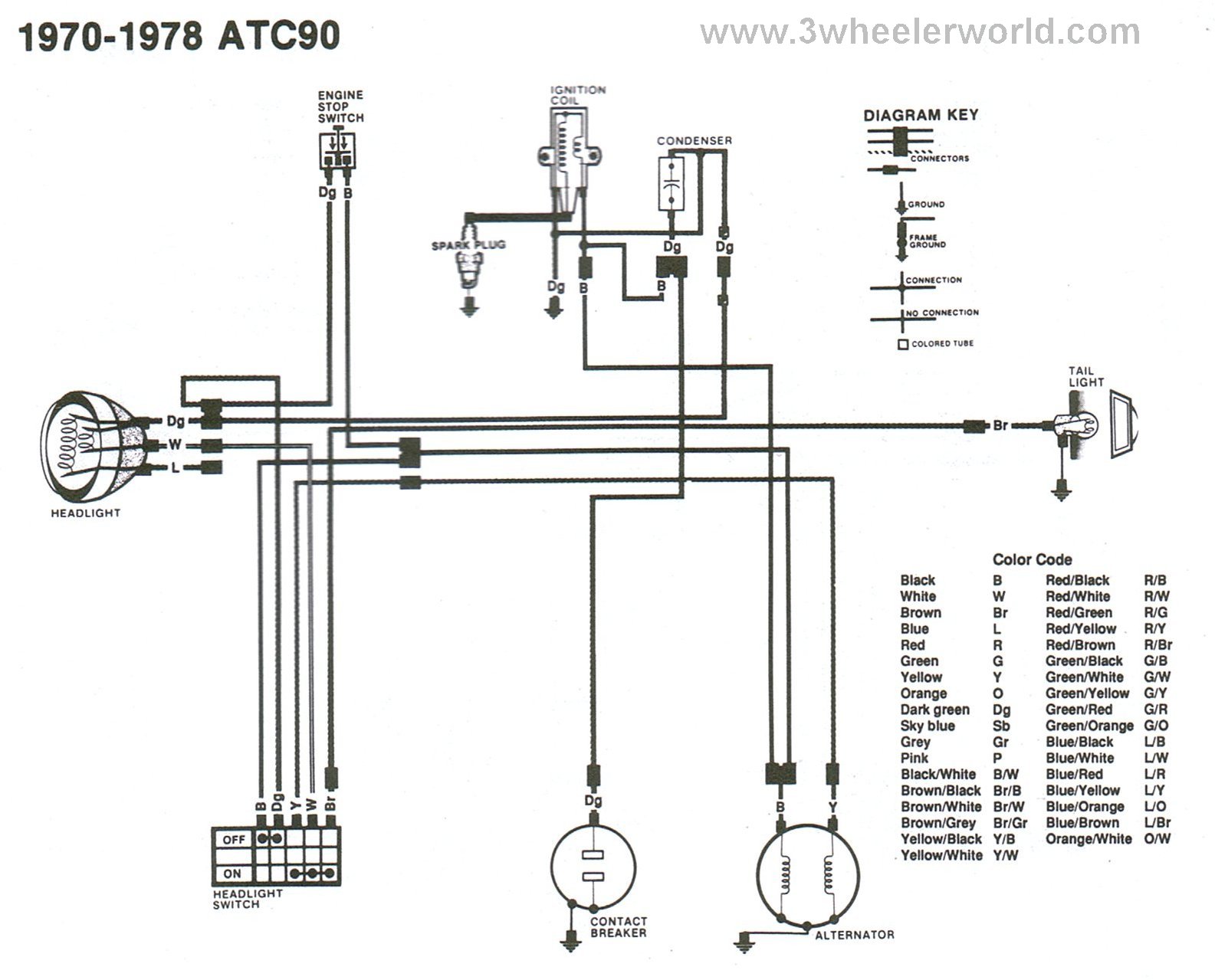

    US90 1970 Thru 1973

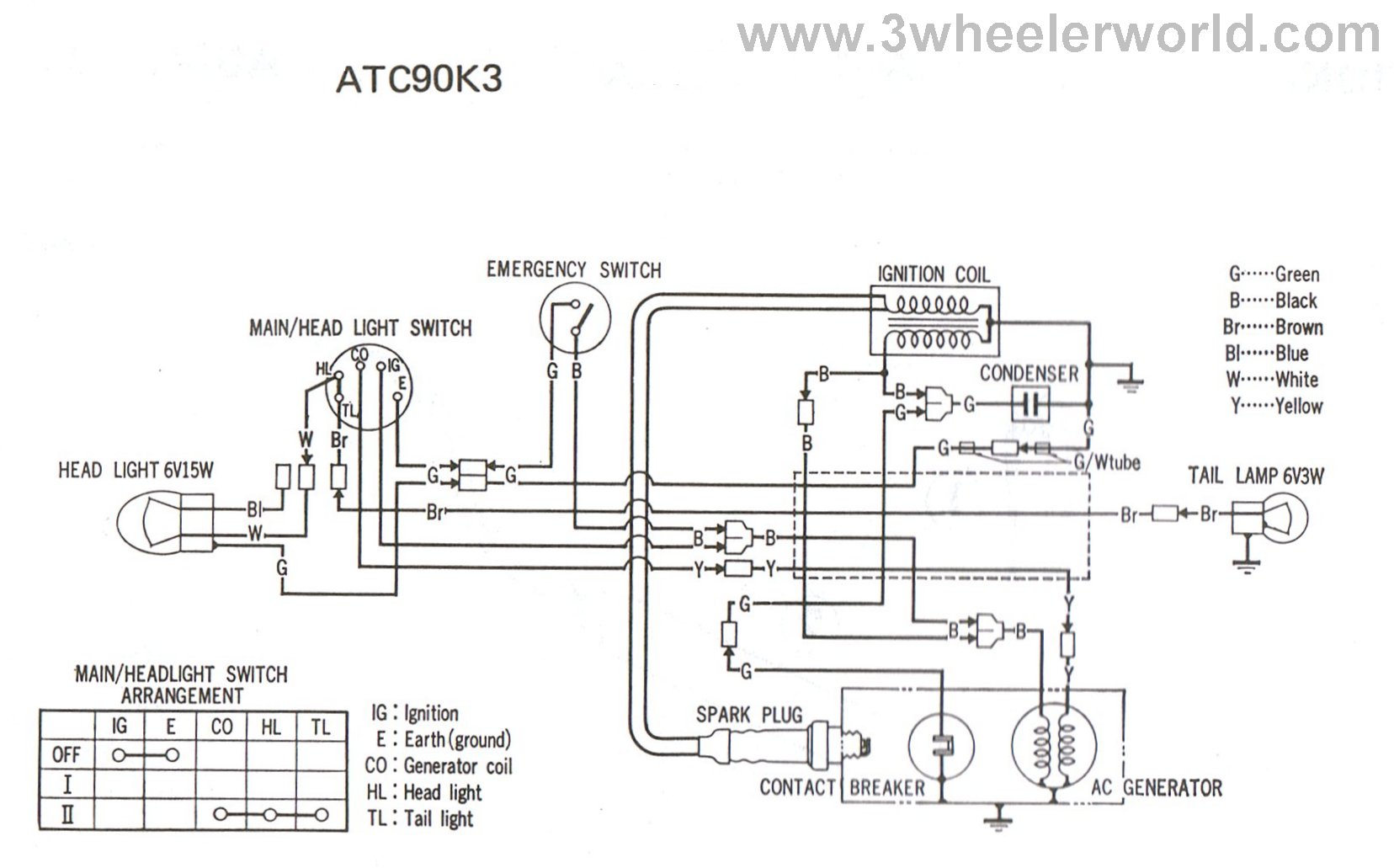

    ATC90 K3 Factory Diagram
    Comments 1 Comment
    1. Threewheelsonly's Avatar
      Threewheelsonly - 09-03-2017, 09:55 PM
      I have rewired my 1978 ATC90 and have an extra DG wire. It looks like there is,supposed to be two DG wires off the condenser but there is only one. Any help with this would be great
